美国人PROLineTM标准型家用电热水器

美国人PROLineTM标准型家用电热水器


希望享受稳定可靠热水器的家庭的理想选择。

Ideal for homeowners desiring a reliable electric water heater.

  • 两个加热元件,4.5KW/240伏(如果需要其他功率和电压的热水器,请与我们联系),效率最高

    Dual Heating Elements, 4.5 KW/240 Volts (other wattages and voltages available) for maximum efficiency

  • 有效防止热量损失,降低能源成本的的不含氯氟烃的聚氨酯泡沫

    Non-CFC Polyurethane Foam to prevent heat loss & reduce energy costs

  • 抗腐蚀保护的Fused Ceramic Shield TankTM(熔融陶瓷盾板)内胆

    Fused Ceramic Shield TankTM for anti-corrosion protection

  • 工厂安装的侧面降温减压安全阀

    Factory Installed Side Temperature & Pressure Valve

  • 温控器/高温限制控制器,使得用户能够调节水温,防止过热

    Thermostat/High Limit Control allows adjustment of water temperature while preventing overheat protection

  • 内置电气接线盒,便于热水器的安装

    Built-In Electric Junction Box for convenient installation

  • 非金属,防腐蚀排污阀

    Non-Metallic, Corrosion-Free Drain Valve

  • 美国UL 174认证,1990美国电器节能法典(NAECA)认证,BOCA和美国采暖、制冷与空调工程师学会(ASHARE)90.1b-1992认证。所有型号均通过300 PSI试验压力和150 PSI工作压力的检测认证。

    Listed to UL 174, 1990 NAECA approved, BOCA and ASHRAE 90.1b-1992. All models are certified at 300 PSI test pressure and 150 PSI working pressure.

  • Fused Ceramic Shield TankTM(熔融陶瓷盾板)内胆

    坚固、厚实、耐用的蓝钴陶瓷经过871oC高温熔融在内胆内部表面上,形成防腐蚀内层,可靠保护和使用可达数年之久。

    Fused Ceramic ShieldTM

    A tough, thick durable coat of blue cobalt ceramic is fused to the tank’s interior surfaces at 1600oF, forming a corrosion-resistant lining for years of dependable protection and use.

  • 两个加热元件

    螺纹拧进,直接浸入近,4500瓦/240伏加热元件,效率最高。如果需要其他种类的电源配置,请与我们联系。

    Dual Heating Elements

    Screw-in, direct immersion, 4500-watt, 240-volt heating elements for maximum efficiency. Available in multiple wattages and voltages for every job.

  • 不含氯氟烃的聚氨酯泡沫绝缘保温层

    这种内胆环绕着厚实的不含氯氟烃的聚氨酯泡沫绝缘保温层,将热量保留在内胆内,节约能源。

    Non-CFC Foam Insulation

    The tank is surrounded by a thick coat of non-CFC polyurethane foam to trap heat inside the tank, saving energy.

  • 内浸管

    将进入的冷水引入内胆底部,将热水温度混合稀释作用降到最小程度。

    Dip Tube

    Carries cold inlet water deep into the tank to minimize temperature dilution of hot water.

  • 降温减压安全阀

    位于热水器侧面,使得采用管道连接到排污口或建筑物外部更加简便易行。也可提供顶部安装的降温减压安全阀安装孔,用于现场安装降温减压安全阀。

    T&P Valve

    Conveniently located on the side of the tank to facilitate piping to a drain or external to the building. Also available with top T&P opening for field-installed top T&P valve.

  • 3/4英寸通径的水接头

    位于顶部。

    3/4” Water Connections

    Located on top.

  • 阳极棒

    顶部安装,加强型阳极,加强对内胆的保护,延长内胆的使用寿命。

    Anode Rod

    Top-mounted, heavy duty anode for added tank protection, extending the life of the tank.

  • 内置电气接线盒

    位于顶部,使用方便的接线盒,适用于1/2英寸或3/4英寸导线管。

    Built-In Electric Junction Box

    Top-located, convenient junction box, ready for 1/2” or 3/4” conduit.

  • 温控器/高温限制控制器

    组合控制装置用于调节水温,防止出现过热现象。

    Thermostat/High Limit Control

    Combination control allows adjustment of water temperature while preventing overheat protection.

  • 通过的认证标准

    美国UL 174认证,1990美国电器节能法典(NAECA)认证,BOCA和美国采暖、制冷与空调工程师学会(ASHARE)90.1b-1992认证。所有型号均通过300 PSI试验压力和150 PSI工作压力的检测认证。

    Code Approvals

    Listed to UL 174, 1990 NAECA approved, BOCA and ASHRAE 90.1b-1992. All models are certified at 300 PSI test pressure and 150 PSI working pressure.

  • 排污阀

    保护儿童,防腐排污阀。

    Drain Valve

    Child-resistant, corrosion-resistant drain valve.

6年有限内胆质量保证

采用坚固耐用的强力量具钢材料,经过自动控制设备进行成型、轧制滚圆和焊接,确保Fused Ceramic ShieldTM(熔融陶瓷盾板)热水器内胆接缝紧密结实。每个内胆都经过三重检验,确保没有质量问题。

6-Year Limited Tank Warranty

Heavy gauge steel is automatically formed, rolled and welded to assure continuous seams for the Fused Ceramic ShieldTM Tank Lining. Each Tank is triple tested to ensure quality.

6年有限配件质量保证

原厂配件质量保证6年。

6-Year Limited Parts Warranty

Original factory parts warranted for 6 years.

如果需要完整的质量保证资料,请致电(800)999-9515向美国人热水器公司咨询书面质量保证书。

For complete warranty information consult the written warranty of American Water Heater Company at (800) 999-9515.

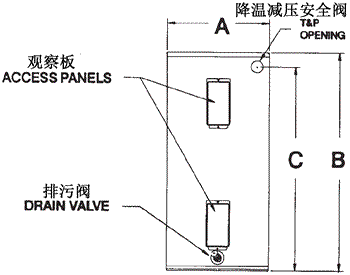

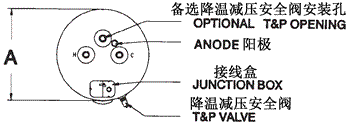

PROLineTM6-年标准型家用电热水器


型号
MODEL NUMBER
容积
加仑(公升)

GPH
GALLON
CAPACITY
水温恢复量
(升高50oC)

RECOVERY
(90o RISE)
能源效率
E.F.
A
热水器
直径

JACKET
DIAMETER
B
热水器
顶部高度

HGT. TO
TOP OF
HEATER
C
侧面
安全阀
开口高度

HGT. TO
SIDE T&P
OPENING
大约
装运重量

APPROX.
SHIPPING
WEIGHT
E61-30H-045DV30 (113公升)20.70.891645-1/238-1/277
E61-40R-045DV40 (151公升)20.70.881847-1/440-3/492
E62-40H-045DV40 (151公升)20.70.88185952-1/2102
E61-50R-045DV50 (189公升)20.70.86204740-3/4113
E62-50H-045DV50 (189公升)20.70.872058-1/251-1/2115
E62-65H-045DV66 (249公升)20.70.852259-1/453152
E62-80H-045DV80 (302公升)20.70.852459-1/453191
E62-119R-045DV119 (450公升)20.70.832861-1/454-3/4278

上述计量单位为美制计量单位。其中:1美制加仑 = 3.785公升。
  如果需要订购单个加热元件,请将型号内的“D”用“S”替换。如果需要顶部安装的降温减压安全阀,请将上述型号中的“V”删掉,这种型号的热水器的降温减压安全阀将包装在热水器包装箱内,随热水器一起运到现场进行安装。由于我们不断的改进我们的产品,因此有关参数如有变化,孰不另行通知。所有长度尺寸单位均为英寸。3/4英寸水接头相距8英寸,并以圆心为中心。所有型号电路都是按照非同步加热元件运行方式进行配置。
